Magnetization Methods and Characteristics

Magnetization Methods

There are two methods generally used to magnetize permanent magnets: static magnetization and pulse magnetization. The first magnetizes via a static electromagnetic field and normally only generates a magnetic field of up to 2MA/m. Pulse magnetization, on the other hand, is used when stronger magnetic fields are desired, or for multipolar magnetization. Each method is optimized for specific materials, shapes and polar configurations. Shin-Etsu can provide ideal magnetizing power and yoke recommendations. Please consult our staff for further information.

Basic Multipolar Magnetization

Click the thumbnail for the large figure.

Magnetization Characteristics

In order to attain maximum magnetic potential, it is necessary to magnetize a material to its saturation point. The magnetizing characteristics of Shin-Etsu rare earth magnets vary according to type.

R Series Samarium Rare Earth Magnets

Demagnetization characteristics differ depending on the coercivity HcJ of the magnet. Therefore, a greater magnetic field is needed to achieve saturated magnetization for magnets with greater coercivity.

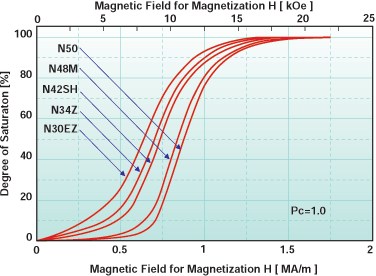

N Series Neodymium Rare Earth Magnets

These magnets are excellent in magnetization, and virtually stable in regard to coercivity. However, special care is needed when re-magnetizing these magnets after demagnetization. Please consult our staff.

Click the thumbnail for the large graph
