N Series Lineup

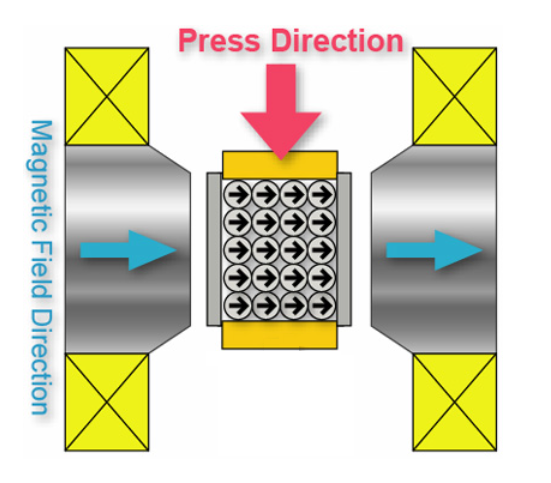

Perpendicular Magnetic Field Press-Type

  Remanence Coercivity Maximum Energy Product
Br HcB HcJ (BH)max
[T]
[G]
[kA/m]
[Oe]
[kA/m]
[Oe]
[kJ/m3]
[MGOe]
N52 1.40 — 1.47
14000 — 14700
820 —
10300 —
875 —
11000 —
378 — 422
47.5 — 53
N50H-MF 1.39 — 1.44
13900 — 14400
1042 —
13100 —
1273 —
16000 —
366 — 406
46 — 51
N50M-F 1.39 — 1.44
13900 — 14400
1042 —
13100 —
1114 —
14000 —
366 — 406
46 — 51
N48H-F 1.35 — 1.41
13500 — 14100
1011 —
12700 —
1273 —
16000 —
350 — 390
44 — 49
N47TH-R 1.32 — 1.38
13200 — 13800
999 —
12550 —
1393 —
17500 —
338 — 382
42.5 — 48
N46MH-MF 1.31 — 1.38
13100 — 13800
999 —
12550 —
1432 —
18000 —
330 — 374
41.5 — 47
N44AS-R 1.29 — 1.35
12900 — 13500
971 —
12200 —
1552 —
19500 —
318 — 358
40 — 45
N42SH-R 1.27 — 1.33
12700 — 13300
955 —
12000 —
1671 —
21000 —
310 — 342
39 — 43
N41UH-R 1.24 — 1.30
12400 — 13000
931 —
11700 —
1989 —
25000 —
294 — 330
37 — 41.5
N41TS-R 1.25 — 1.31
12500 — 13100
939 —
11800 —
1790 —
22500 —
294 — 334
37 — 42
N39UH 1.22 — 1.28
12200 — 12800
915 —
11500 —
1989 —
25000 —
286 — 318
36 — 40
N37UZ 1.19 — 1.25
11900 — 12500
891 —
11200 —
2228 —
28000 —
271 — 302
34 — 38
N36Z 1.16 — 1.22
11600 — 12200
875 —
11000 —
2387 —
30000 —
263 — 294
33 — 37
N32EZ 1.10 — 1.16
11000 — 11600
828 —
10400 —
2785 —
35000 —
231 — 263
29 — 33

・Magnetic properties of various materials represent reference characteristic values.

Downloads

  • N Series Lineup
  • Go to Surface Processing
  • Go to Magnet Samples
  • R Series Lineup
  • R Series Magnetic Performance Distribution Chart

Go to Top

Grain Boundary Diffusion-Type

  Remanence Coercivity Maximum Energy Product
Br HcB HcJ (BH)max
[T]
[G]
[kA/m]
[Oe]
[kA/m]
[Oe]
[kJ/m3]
[MGOe]
N52AS-GF 1.41 — 1.47
14100 — 14700
1058 —
13300 —
1552 —
19500 —
374 — 422
47 — 53
N50SH-GF 1.38 — 1.44
13800 — 14400
1035 —
13000 —
1671 —
21000 —
362 — 406
45.5 — 51
N49TS-GR 1.36 — 1.42
13600 — 14200
1019 —
12800 —
1790 —
22500 —
350 — 398
44 — 50
N48UH-GR 1.34 — 1.40
13400 — 14000
1003 —
12600 —
1989 —
25000 —
338 — 390
42.5 — 49
N47TS-GF 1.33 — 1.39
13300 — 13900
995 —
12500 —
1790 —
22500 —
334 — 382
42 — 48
N44UZ-GR 1.30 — 1.36
13000 — 13600
979 —
12300 —
2228 —
28000 —
318 — 362
40 — 45.5
N44TU-GR 1.29 — 1.35
12900 — 13500
971 —
12200 —
2109 —
26500 —
314 — 358
39.5 — 45
N41MZ-GR 1.25 — 1.31
12500 — 13100
939 —
11800 —
2586 —
32500 —
294 — 334
37 — 42
N41Z-GR 1.25 — 1.31
12500 — 13100
939 —
11800 —
2387 —
30000 —
294 — 334
37 — 42
N37EZ-G 1.18 — 1.25
11800 — 12500
883 —
11100 —
2785 —
35000 —
263 — 302
33 — 38

・Magnetic properties of various materials represent reference characteristic values.

・The magnetic properties of grain boundary diffusion magnets vary depending on size and shape, and may not satisfy the magnetic properties described above.

Downloads

  • N Series Magnetic Performance Distribution Chart
  • Surface Processing
  • Magnet Samples
  • R Series Lineup
  • R Series Magnetic Performance Distribution Chart

Back to Top

S Grain Boundary Diffusion-Type

  Remanence Coercivity Maximum Energy Product
Br HcB HcJ (BH)max
[T]
[G]
[kA/m]
[Oe]
[kA/m]
[Oe]
[kJ/m3]
[MGOe]
N52TS-SGF 1.41 — 1.47
14100 — 14700
1058 —
13300 —
1790 —
22500 —
374 — 422
47 — 53
N50UH-SGF 1.38 — 1.44
13800 — 14400
1035 —
13000 —
1989 —
25000 —
362 — 406
45.5 — 51
N48UZ-SGR 1.34 — 1.40
13400 — 14000
1003 —
12600 —
2228 —
28000 —
338 — 390
42.5 — 49
N47TU-SGF 1.33 — 1.39
13300 — 13900
995 —
12500 —
2069 —
26000 —
334 — 382
42 — 48
N44Z-SGR 1.30 — 1.36
13000 — 13600
979 —
12300 —
2467 —
31000 —
318 — 362
40 — 45.5
N41EZ-SGR 1.25 — 1.31
12500 — 13100
939 —
11800 —
2785 —
35000 —
294 — 334
37 — 42

・Magnetic properties of various materials represent reference characteristic values.

・The magnetic properties of grain boundary diffusion magnets vary depending on size and shape, and may not satisfy the magnetic properties described above.

Downloads

  • N Series Magnetic Performance Distribution Chart
  • Surface Processing
  • Magnet Samples
  • R Series Lineup
  • R Series Magnetic Performance Distribution Chart

Back to Top

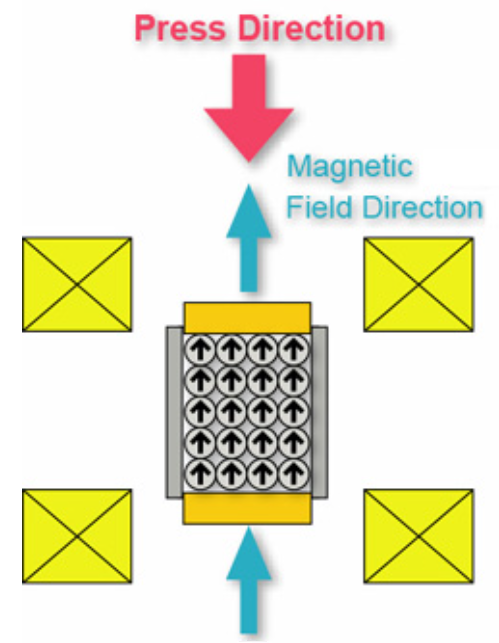

Parallel Magnetic Field Press-Type

  Remanence Coercivity Maximum Energy Product
Br HcB HcJ (BH)max
[T]
[G]
[kA/m]
[Oe]
[kA/m]
[Oe]
[kJ/m3]
[MGOe]
N44MA 1.29 — 1.36
12900 — 13600
947 —
11900 —
1114 —
14000 —
310 — 358
39 — 45
N41FA 1.25 — 1.32
12500 — 13200
923 —
11600 —
1194 —
15000 —
290 — 342
36.5 — 43
N41A 1.24 — 1.32
12400 — 13200
820 —
10300 —
915 —
11500 —
286 — 334
36 — 42
N37HA 1.18 — 1.25
11800 — 12500
875 —
11000 —
1273 —
16000 —
263 — 302
33 — 38
N36SA 1.15 — 1.22
11500 — 12200
851 —
10700 —
1671 —
21000 —
247 — 294
31 — 37
N33UA 1.11 — 1.18
11100 — 11800
828 —
10400 —
1989 —
25000 —
231 — 271
29 — 34
N31ZA 1.07 — 1.14
10700 — 11400
795 —
10000 —
2387 —
30000 —
207 — 255
26 — 32

・Magnetic properties of various materials represent reference characteristic values.
